HIx production-grade dual-platen design keeps DTF shops moving without sacrificing transfer quality

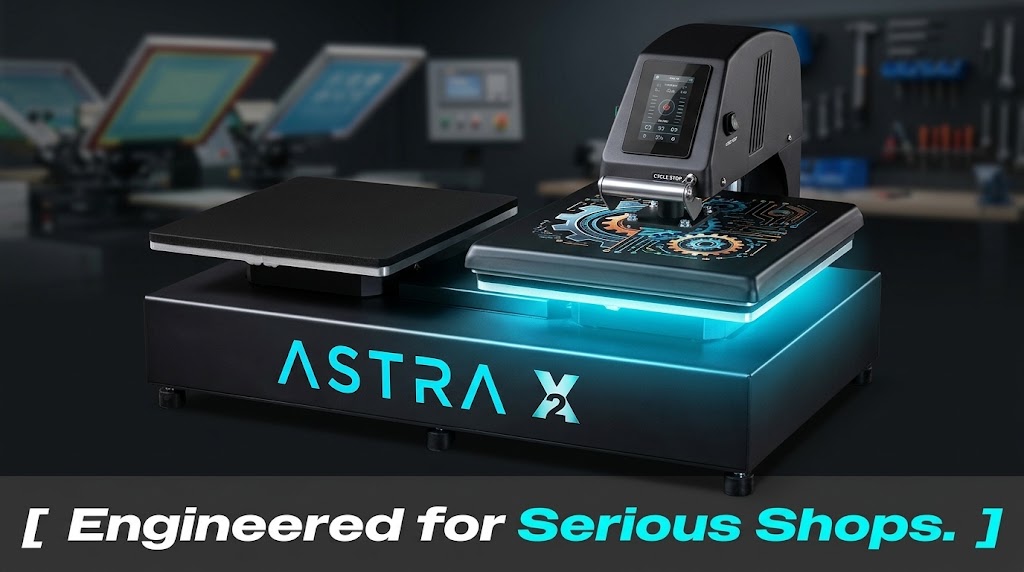

PITTSBURG | Kansas – August 2026 – HIX has launched the Astra X2, a dual-platen pneumatic heat press engineered for high-volume DTF transfer production. The Astra X2 helps growing shops move beyond entry-level equipment into consistent, scalable output.
Dual-Platen Workflow
While one platen presses a transfer, operators load the next garment on the other — cutting idle time between cycles and keeping production moving.
Consistent Pneumatic Pressure
A pneumatic pressure system delivers repeatable pressure on every press, producing clean transfers and strong adhesion across large production runs, without the fatigue of manual presses.
Built for Commercial Use
The Astra X2 is built for daily use in commercial environments, with production-grade components designed to hold stable performance shift after shift.
Technical Specifications
- Product dimensions: 38 in. wide × 24 in. high × 32 in. deep
- Weight: approximately 236 lbs. (107 kg)
- Shipping dimensions: 42 in. wide × 48 in. long × 35 in. high
- Shipping weight: 366 lbs. (166 kg)
- Electrical: 120V/60Hz, 1750W, 14.5A — or 220V/60Hz, 2000W, 10A
- Upper platen temperature range: 0°F–450°F (232°C)
- Air requirements: clean, dry air at 100–125 psi, 1.5–2 CFM (air compressor sold separately)
Ce qui est inclus
- Dual independent platens
- NovaLift upward pressing system
- Digital time and temperature controls
- Production-grade construction
- Manufacturer support
- Made in the USA
